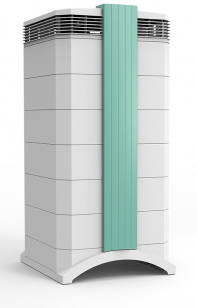

Cleanroom H13 (NE)
The IQAir Cleanroom Series are configured with the hospital-grade HyperHEPA Class H13 filter. It can help to lower the airborne particles ranging from large dust to ultra-fine particles such as allergens, bacteria and viruses. As such, its application will reduce the chance of occupants from inhaling excessive particles, being infected by allergens, bacteria and viruses, as well as lower the potential risk of cross infection of infectious diseases such as cold and flu among the occupants. Also, the pre-filter and HEPA-filter of Cleanroom Series consists of antimicrobial media that is capable of destroying the growth of disease-causing microorganisms.
Catalogue1. 2-stage filtration system, features an extra-large surface pre-filter to allow for maximum air delivery and extra-long filter life and an antimicrobial hospital grade HEPA class H13 filter for ultra-fine particles control
2. Individually tested and certified for guaranteed filtration efficiency of ≧99.97% for particles with size ≧0.3 micron, and supplied with a hand-signed Certificate of Performance
3. FDA-registered as a "Class II Medical Device"
4. Anti-tampering features designed to prevent unauthorized access to the replacement filters
5. Power cable inlet fixture helps to prevent unauthorized unplugging of the system
2. Individually tested and certified for guaranteed filtration efficiency of ≧99.97% for particles with size ≧0.3 micron, and supplied with a hand-signed Certificate of Performance
3. FDA-registered as a "Class II Medical Device"
4. Anti-tampering features designed to prevent unauthorized access to the replacement filters
5. Power cable inlet fixture helps to prevent unauthorized unplugging of the system
| Air delivery per fan speed (in m3/h) | 1: 65 2: 120 3: 190 4: 270 5: 370 6: 530 m3/h |
| Weight (incl. filters) (approx.) | ca. 21 kg |
| Power requirements | 220-240 V / 50-60 Hz |
| Energy consumption | ca. 20-135 W |
| Dimensions (H x W x D) | 82 x 38 x 41 cm |
| Fan motor | centrifugal, backward curved, with thermal protector, non-stop use approved |
| Colour of main housing / locking arms | light grey / green |
| Housing material | non-offgasing, impact-resistant, UV-stabilized ABS |
- Protective isolation rooms
- ICUs
- Operating rooms
- Research & microbiology labs
- Food processing & packaging
- Critical data storage facilities
- Computer & server rooms
- ICUs
- Operating rooms
- Research & microbiology labs
- Food processing & packaging
- Critical data storage facilities
- Computer & server rooms
F1 - Pre-filter (CR PreMax Filter F8 (S) A)
- Purpose: control of coarse, fine & ultra-fine dust particles; protection of subsequent filters
- Efficiency: ≧ 55% at ≧ 0.3 μm (class F8, antimicrobial type)
F2 - HEPA-filter (CR HyperHEPA Filter H13 (L) A)
- Purpose: control of fine & ultra-fine particulate matter incl. bacteria, viruses & mould spores
- Efficiency: ≧ 99.97% at ≧ 0.3 μm (class H13, antimicrobial type)
- Purpose: control of coarse, fine & ultra-fine dust particles; protection of subsequent filters
- Efficiency: ≧ 55% at ≧ 0.3 μm (class F8, antimicrobial type)
F2 - HEPA-filter (CR HyperHEPA Filter H13 (L) A)
- Purpose: control of fine & ultra-fine particulate matter incl. bacteria, viruses & mould spores
- Efficiency: ≧ 99.97% at ≧ 0.3 μm (class H13, antimicrobial type)
Advanced controls
- 4 languages selection
- 6 selectable fan speeds settings
- Intelligent filter life monitor and filter replacement LEDs
- Advanced timer to allow programming of operating hours and weekdays
- Supplied with remote control & power cord with plug
- Supplied with casters for easy mobility
- 4 languages selection
- 6 selectable fan speeds settings
- Intelligent filter life monitor and filter replacement LEDs
- Advanced timer to allow programming of operating hours and weekdays
- Supplied with remote control & power cord with plug
- Supplied with casters for easy mobility
